BL01 Sample Environment

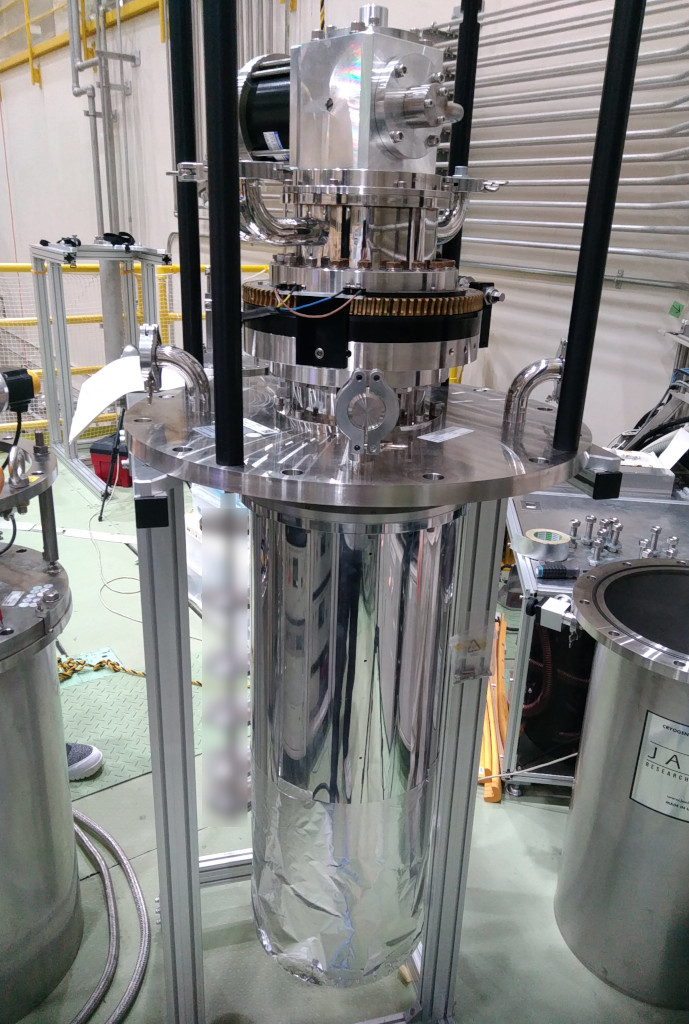

Top-Loading GM Refrigerator
- Temperature range: 5-300 K (up to 600 K with the high-temperature stick)
- Sample space: 99 mm in diameter
- Sample mount: M8 male screw. Various attachment converters are available.

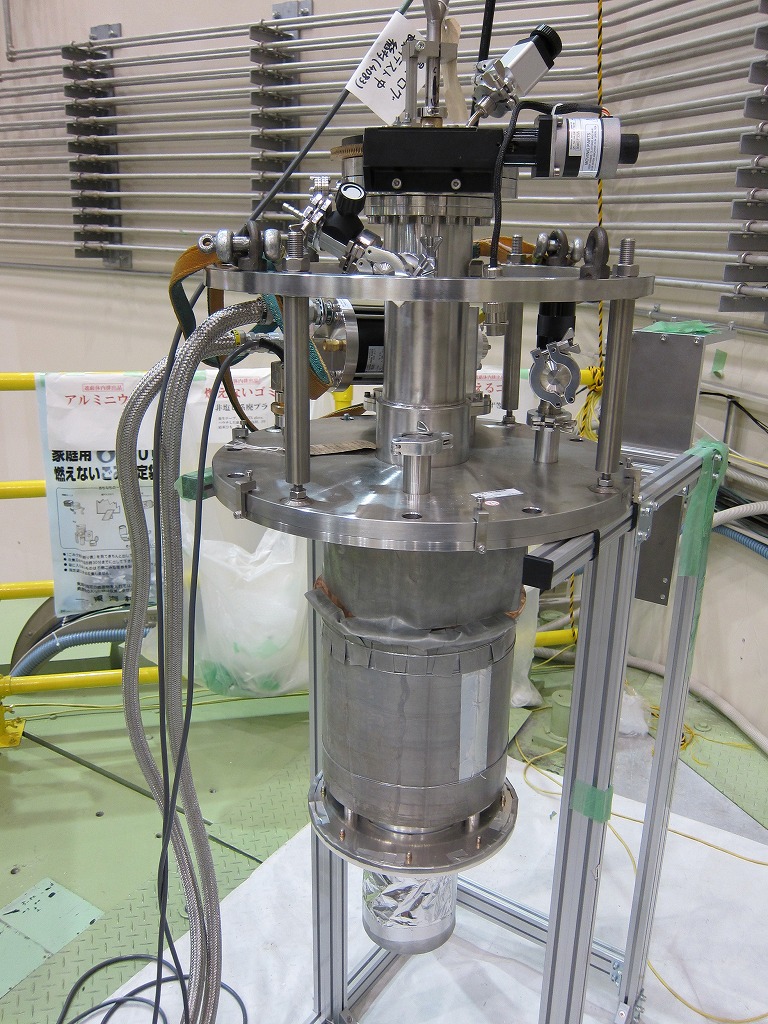

Bottom-Loading GM Refrigerator
- Temperature range: 5-300 K
- Sample mount: 8 M4 screws equally spaced at PCD = 44 mm. Distance between the attachment surface and the beam center is 50 mm. Various spacers are available.
